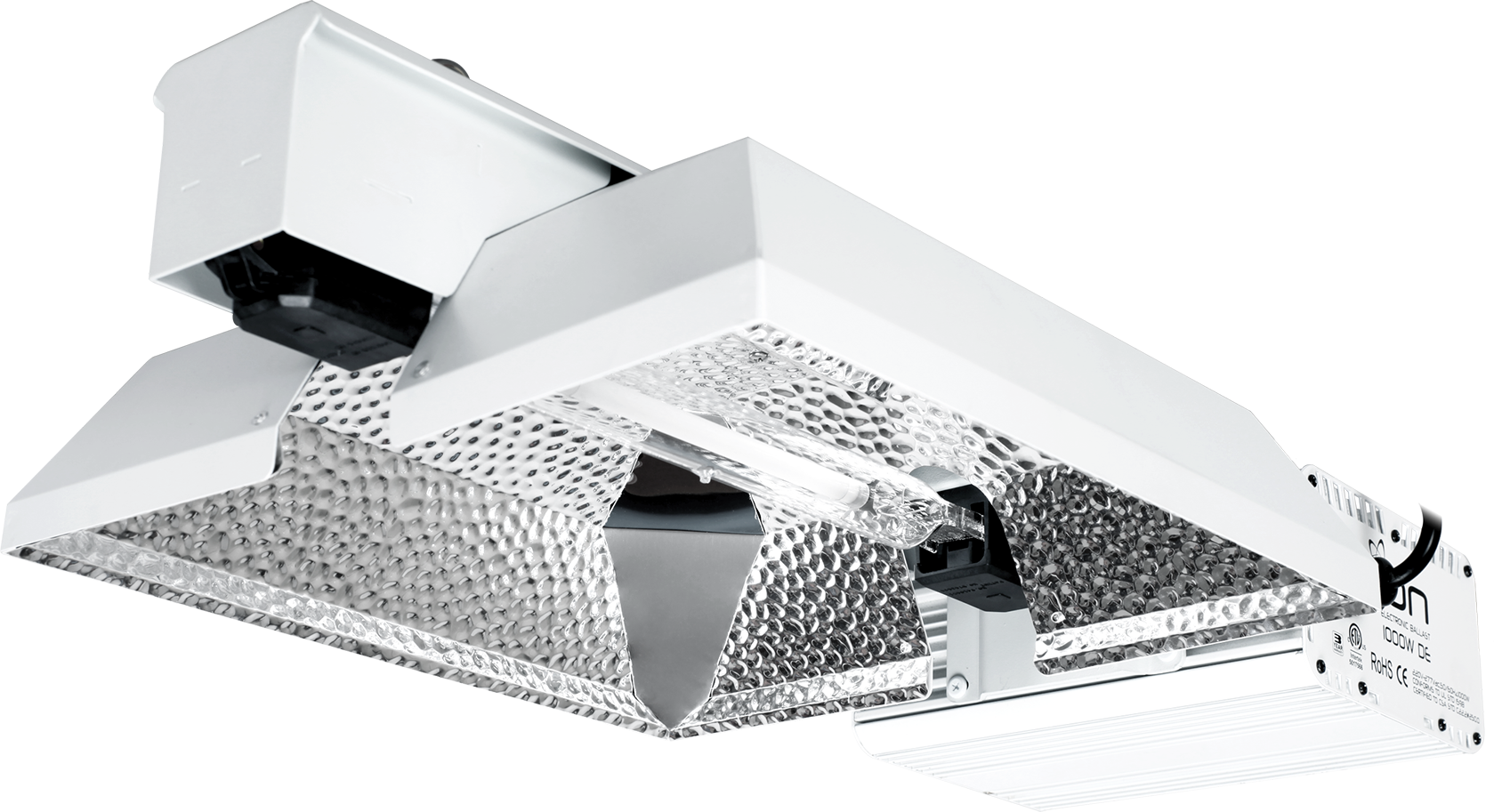

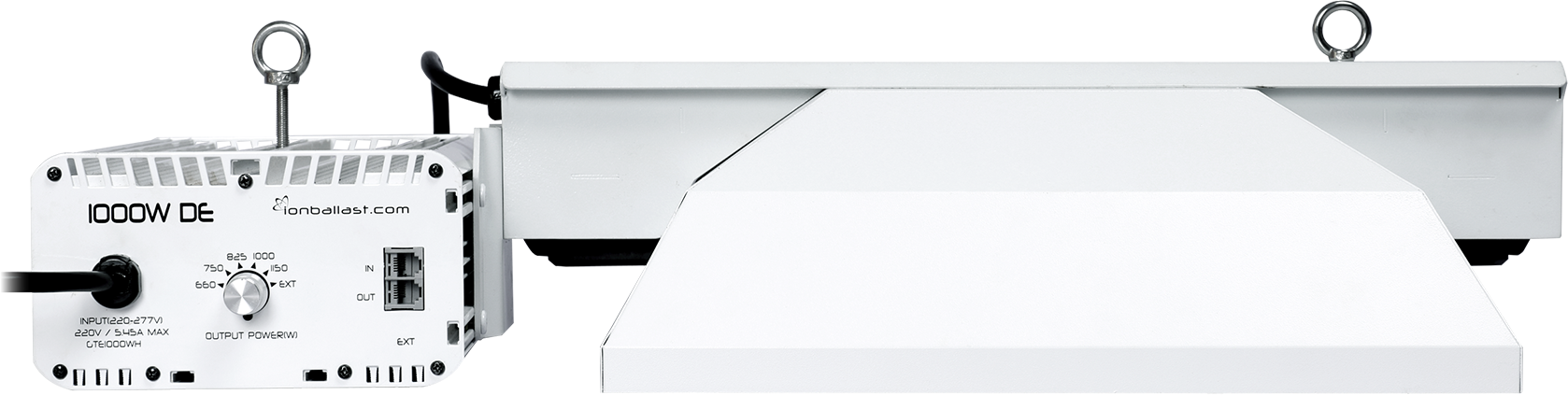

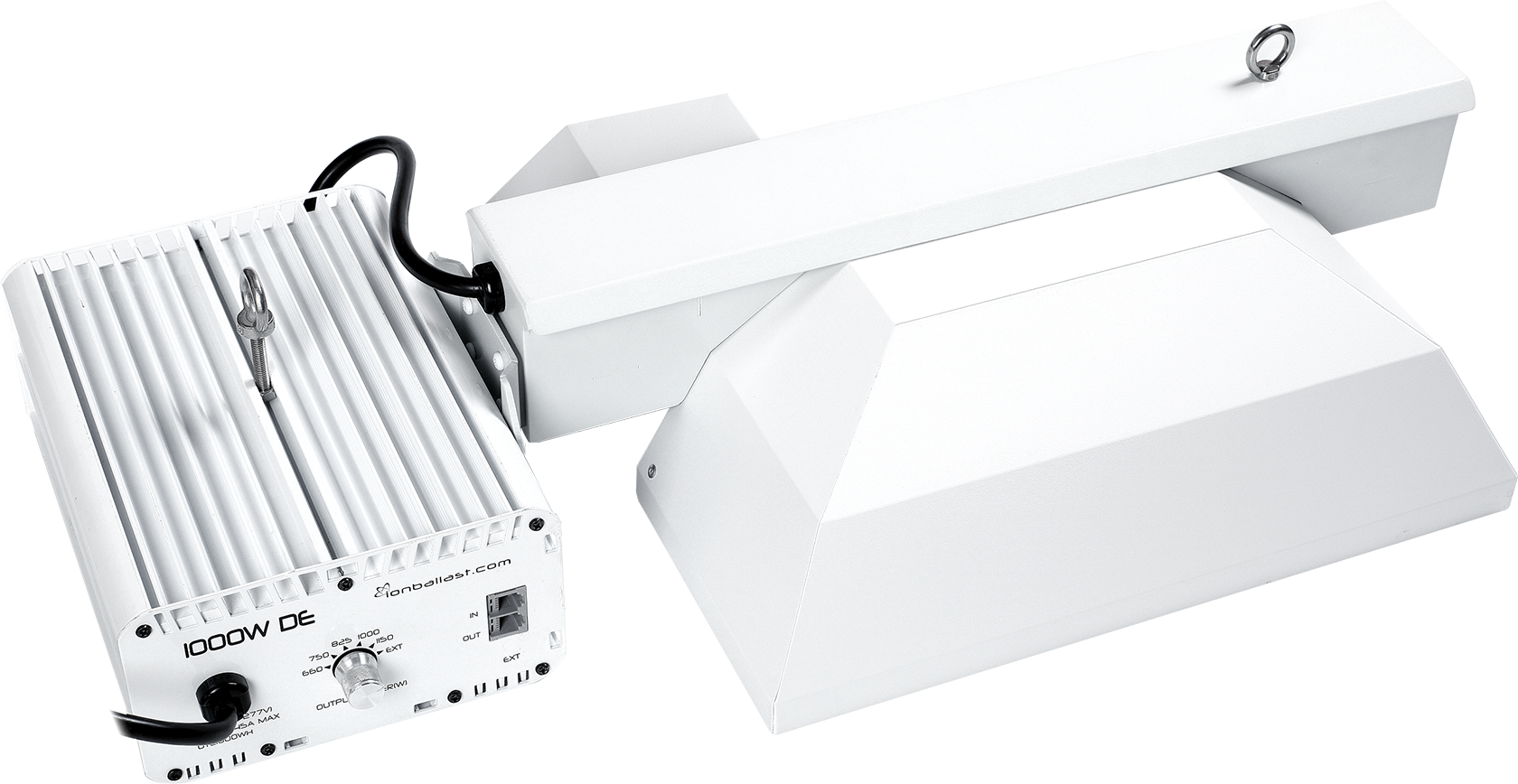

1000W DE Fixture 208-277V

High-Intensity Control. Proven HID Performance.

The ION 1000W DE Fixture is built for growers who still count on serious output and deep canopy penetration. Compatible with both 1000W double-ended HPS and MH lamps (sold separately), this fixture delivers consistent PAR intensity, broad coverage, and flexible control in commercial and craft cultivation environments.

At the core is our newly redesigned BroadCast Reflector, purpose-built to throw even light across wide canopies while driving deep into lower plant zones. A low-profile digital ballast provides 6-stage dimming from 660W to 1150W plus EXT mode, giving you total control throughout the veg and bloom cycles.

Engineered for reliability and control—this is HID, reimagined for today’s growers.

Buy Now

1000W DE Fixture 208-277V

  • BroadCast Reflector for wide, uniform canopy coverage and deep light penetration
  • Runs 1000W DE HPS & MH lamps for full-cycle flexibility (lamp sold separately)
  • 6-stage dimming: 660W / 750W / 825W / 1000W / 1150W / EXT
  • Low-profile ballast with smart safety protections
  • 0–10V controller ready for integration into automated systems
  • Built tough to handle heat, humidity, and daily use in commercial gardens
  •
Buy Now
Brochure

1000W DE 208-277V Specifications

Specification Value
Input Power 1180W
Voltage Range 208–277V
Power Factor ≥ 0.98
Input Frequency 50/60 Hz
Output Frequency 100–160 kHz
Total Harmonic Distortion < 8%
Ignition Voltage 3.5–4 kV
Open Circuit Voltage 250V RMS
Maximum Amperage Protection 8A
Current Draw @ 208V 5.69A
Current Draw @ 220V 5.37A
Current Draw @ 240V 4.93A
Current Draw @ 277V 4.26A
Dimming Levels 660W, 750W, 825W, 1000W, 1150W, EXT
Lamp Compatibility 600W–1000W DE HPS or MH (lamp sold separately)
Control Interface 0–10V compatible
Cooling Passive (no fan)
Operating Temp -25°C to 40°C (-13°F to 104°F)
Operating Humidity 20%–95%
IP Rating IP23
Dimensions (L × W × H) 675 × 355 × 130 mm (26.6” × 14” × 5.1”)
Weight 8.0 kg (17.6 lbs)
Warranty 3 Years
